NDS 800 - 5" Inch x 40" Inch Pro Serie Channel Drain, Deep Profile

NDS 800 - 5" Inch x 40" Pro Series Channel Drain, Deep Profile

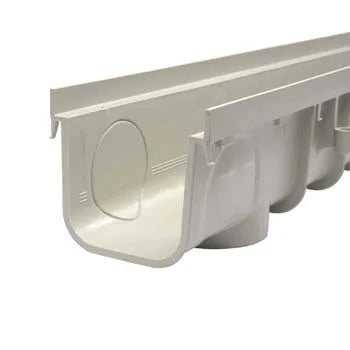

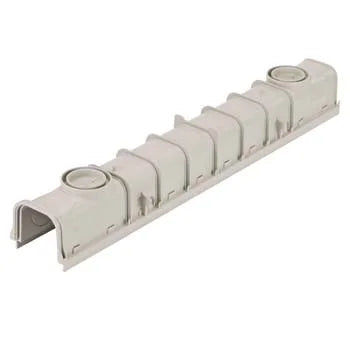

The NDS 800 5" inch x 40" inch Pro Series Channel Drain is a high-performance drainage solution designed for residential and light commercial applications. This durable channel drain efficiently collects and diverts surface water, preventing flooding and water damage.

Key Features:

• 5-inch wide channel for optimal water flow
• Durable, UV-resistant material
• Interlocking design for easy installation
• Compatible with various grate options
• Suitable for driveways, patios, and pool areas

Installation Instructions:

1. Excavate a trench according to local building codes
2. Create a level base with gravel or concrete
3. Connect drain sections and outlets
4. Set drain to proper height and slope
5. Pour concrete around the drain
6. Install grates and finish surrounding area

Product Specifications:

• Material: Polypropylene w/UV inhibitors (PP)

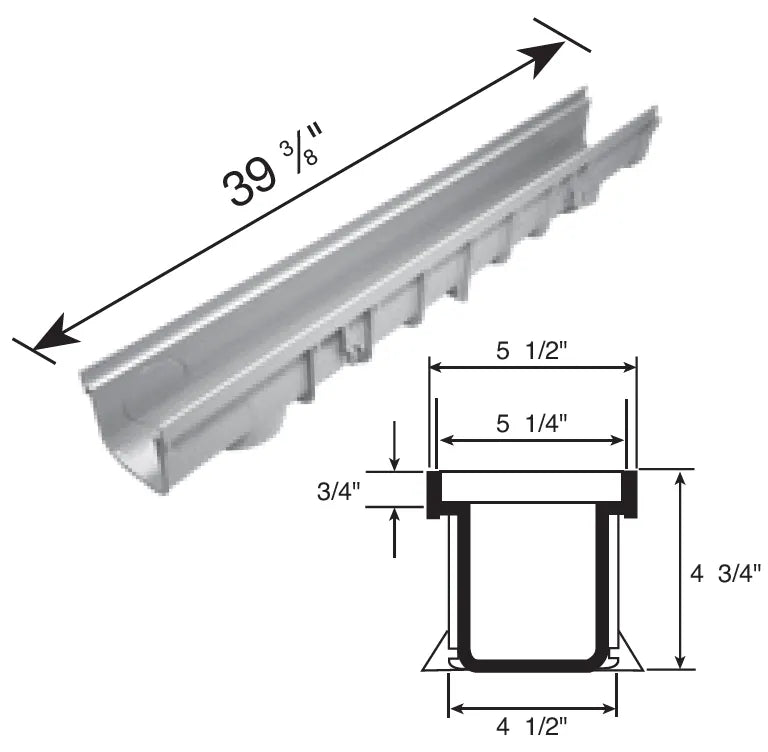

• Dimensions: 5 1/2" inch width x 4 3/4" inch depth x 39 3/8" length
• Available lengths: 1 meter
• Load class: Light duty to medium duty
• Flow rate: 71-101GPM (varies by slope)
• Compatible grate materials: Plastic, cast iron

Product and Technical Information

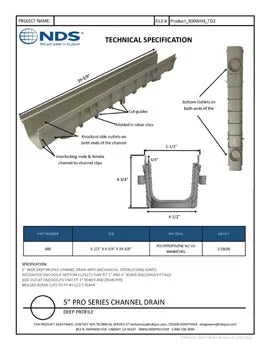

Technical Specifications - NDS 5" Pro Series Profile Channel Drain
Technical Specifications - NDS 5" Pro Series Grate
