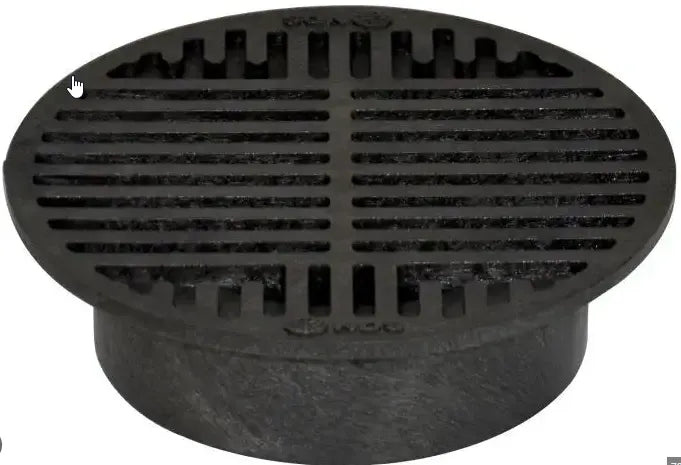

NDS 10 - 8" Round Grate - Black

NDS 10 - 8" Round Grate - Black

Colors: Black (#10), Gray (#30), Green (#20)

Enhance your drainage system with the NDS 10 8IN Round Grate. This durable and attractive grate is designed to cover catch basins, providing effective drainage while maintaining a clean, professional appearance.

Key Features:

• 8-inch round design
• Constructed from high-impact plastic
• UV-resistant to prevent fading and degradation
• Suitable for pedestrian traffic areas

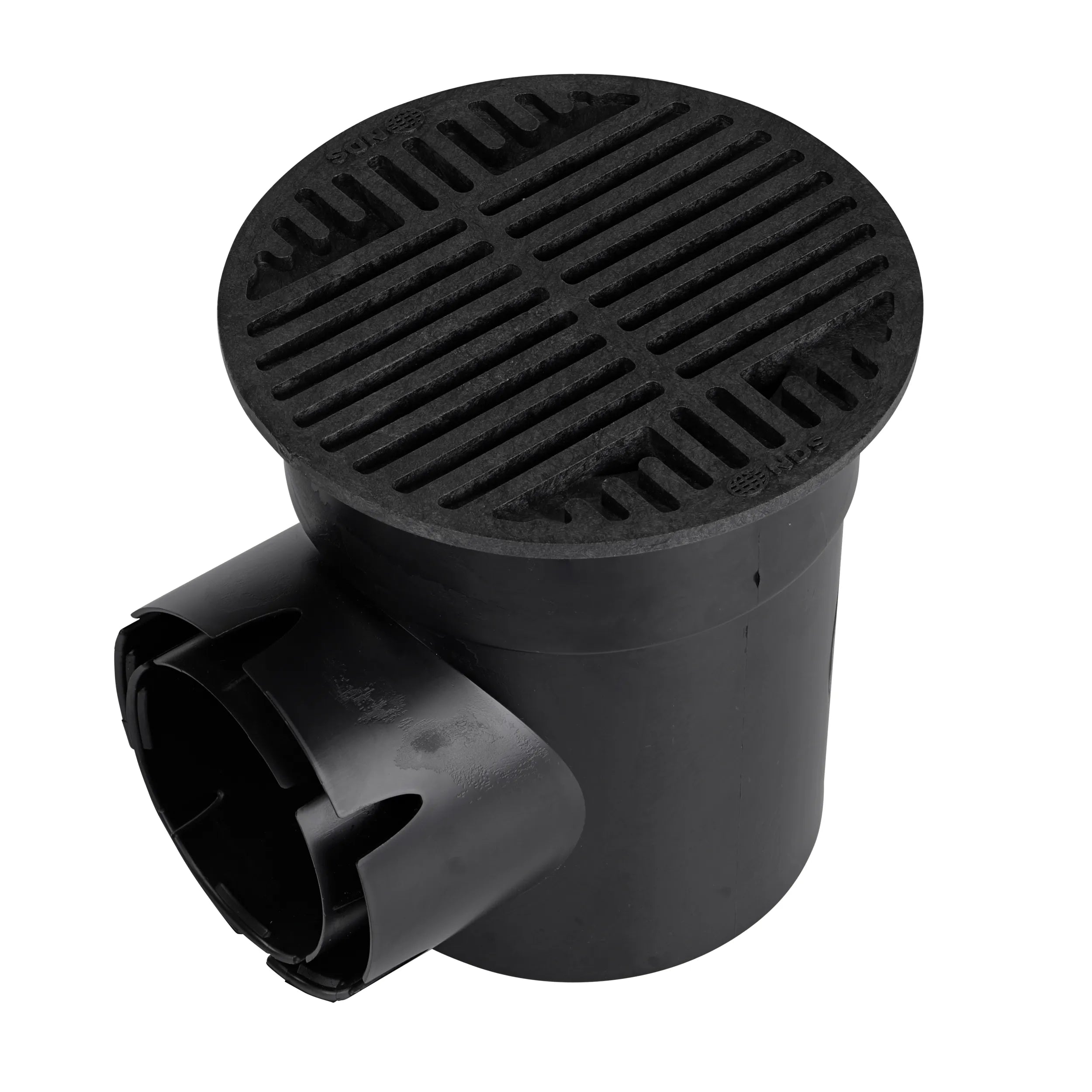

• Compatible with NDS catch basins

Installation Instructions:

1. Ensure the catch basin is properly installed and level.
2. Clean the top surface of the catch basin.
3. Place the grate directly on top of the catch basin.
4. Press down firmly to secure the grate in place.
5. For added security, use stainless steel screws (not included) to fasten the grate to the catch basin.

Product Specifications:

• Diameter: 8 inches (20.32 cm)
• Material: High-impact polypropylene
• Color: Black
• Weight capacity: Suitable for pedestrian traffic
• Compatible catch basins: NDS 9 inch and 12 inch square catch basins

Maintenance: Periodically remove the grate and clean both the grate and catch basin to ensure proper drainage. Inspect for damage and replace if necessary.

Product and Technical Information

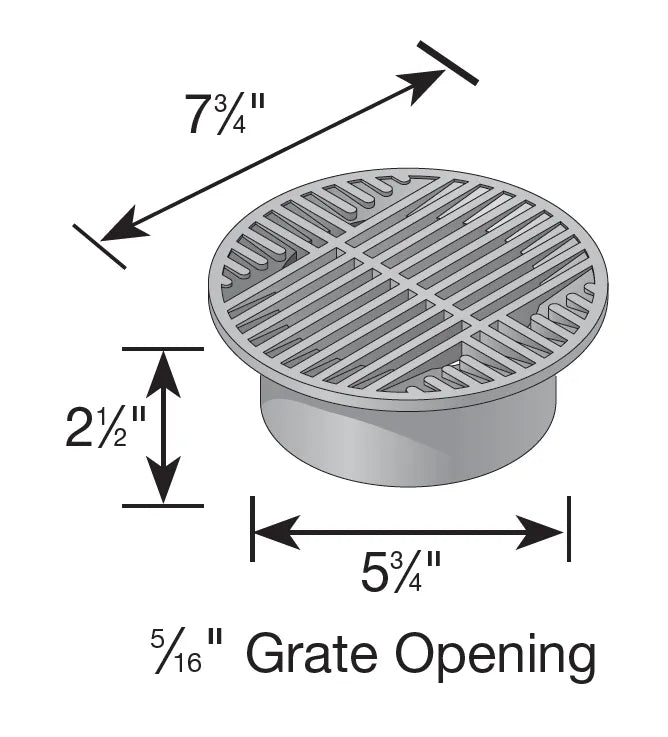

Dimensions: L 7-3/4" x W 5-3/4" x H 2-1/2"

Technical Specifications - NDS 8" Round Grate

Installation Instructions - NDS Round Grate with Tee Corrugated Pipe

Installation Instructions - NDS Round Grate with Spee-D Basin 2-Outlets

Installation Instructions - NDS Round Grate with Spee-D Basin 2-Outlets using Corrugated Pipe
Installation Instructions - NDS Round Grate with Spee-D Basin 1-Outlet

Installation Instructions - NDS Round Grate with Spee-D Basin 1-Outlet using Corrugated Pipe

Installation Instructions - NDS Round Grate with Sanitary Sewer and Drain Tee
Installation Instructions - NDS Round Grate with Sanitary Sewer and Drain Tee Corrugated Pipe

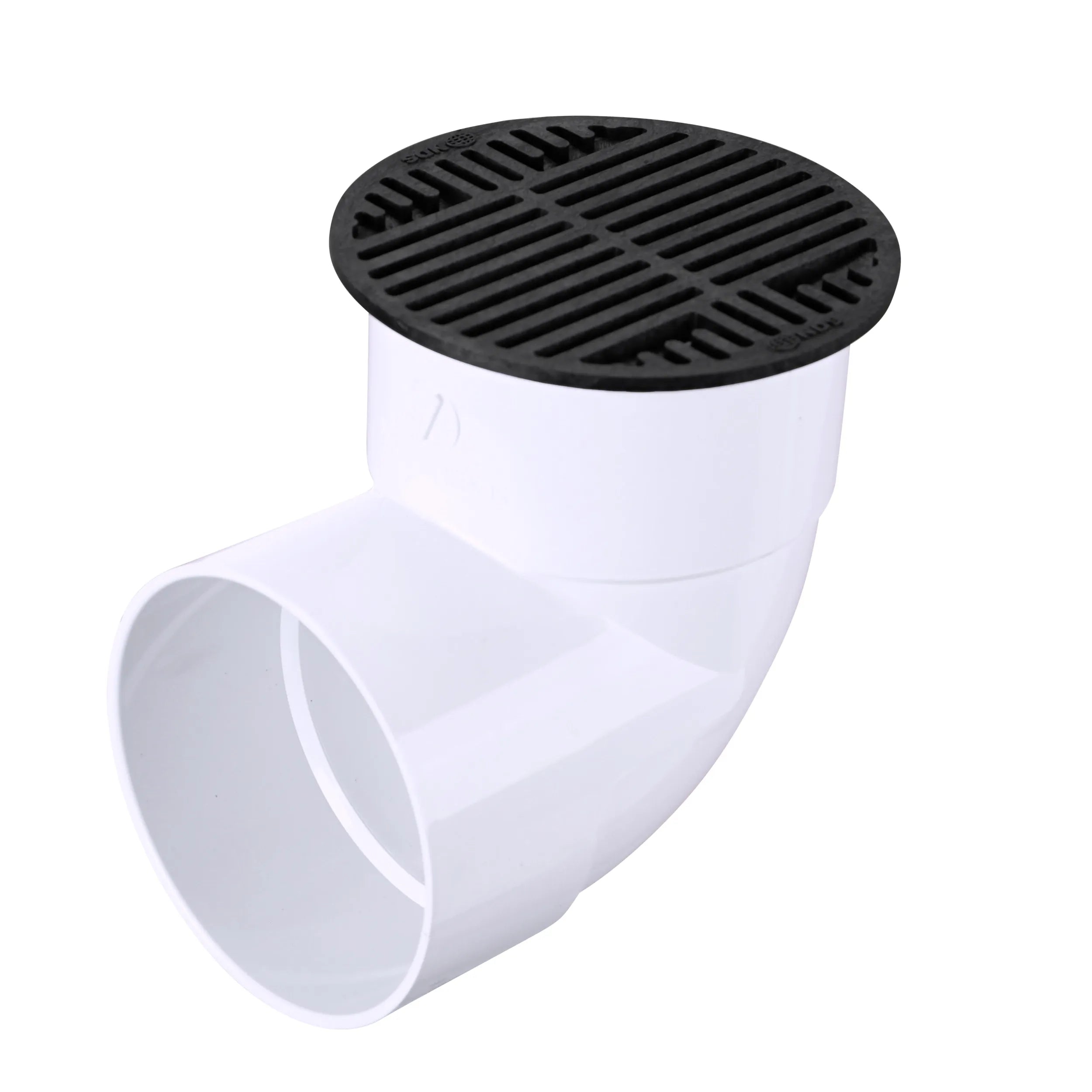

Installation Instructions - NDS Round Grate with Sewer and Drain Elbow
Installation Instructions - NDS Round Grate with Sewer and Drain Elbow Corrugated Pipe
